Fokolore Project

Overview

Characterized by crosscutting N/NE oriented structures deriving from the major Senegalo-Malian Shear
Historical trenching across the 3.6km-long Mamoudouya Main shear zone with a 200ppb gold in soils anomalism, has returned Up to 24m@2.35g/t and 12m@2.13g/t
Similar structural setting as observed at Loulo and Tabakoto gold mines. Grab samples taken along the shear returned results of 8.2g/t and 100g/t.
Results were positive and show a broad trend of elevated gold in soil with a geochemical signature of Au.

Central Zone

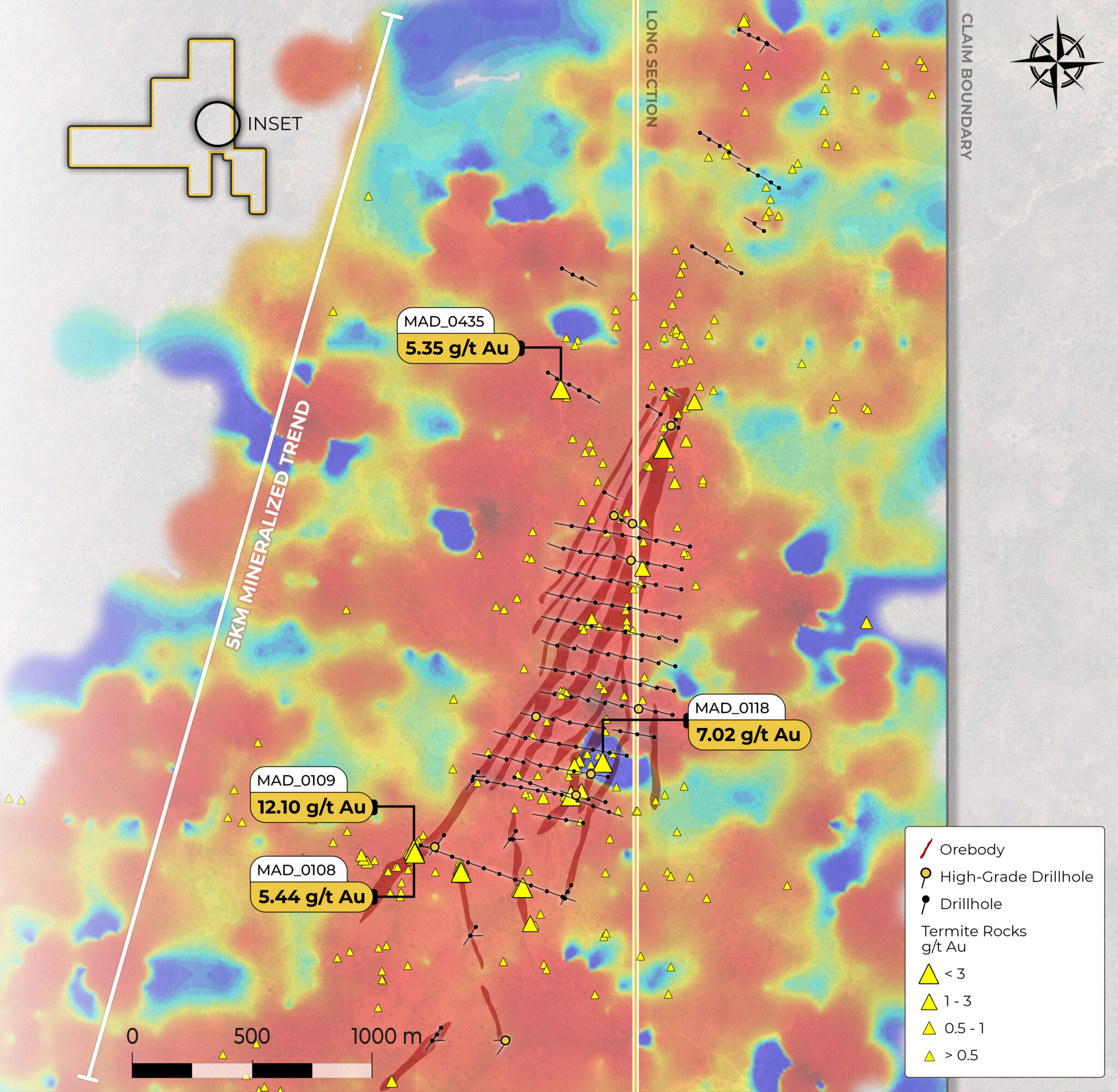

Drilling & Rocks over Gold Geochemistry

2012 RC Results
MRC0002	3.0m @ 2.71g/t
MRC0006	3.0m @ 8.77g/t
MRC0019	2.0m @ 4.5g/t
MRC0021	2.0m @ 5.99g/t
MRC0033	2.0m @ 3.38g/t
MRC0051	3.0m @ 7.39g/t
MRC0052	3.0m @ 4.32g/t
MRC0079	4.0m @ 3.58g/t
MRC0080	7.0m @ 4.51g/t
MRC0097	3.0m @ 13.49g/t

2018 RC Results
MCR18-007	2.0m @ 5.04 g/t
MCR18-007	8.0m @ 8.99 g/t
MCR18-001	15.0m @ 5.06 g/t
MCR18-052	3.0m @ 4.51 g/t
MCR18-043	3.0m @ 20.97 g/t
MRC18-017	1.0m @ 3.22 g/t
MRC18-003	1.0m @ 3.24 g/t
MRC18-009	1.0m @ 3.50 g/t
MRC18-015	1.0m @ 3.88 g/t
MRC18-031	1.0m @ 4.12 g/t
MRC18-054	1.0m @ 4.30 g/t
MRC18-047	1.0m @ 4.56 g/t
MRC18-038	1.0m @ 5.17 g/t
MRC18-015	1.0m @ 4.70 g/t
MRC18-003	1.0m @ 6.94 g/t
MRC18-003	1.0m @ 7.60 g/t
MRC18-003	1.0m @ 16.90 g/t

Central Zone

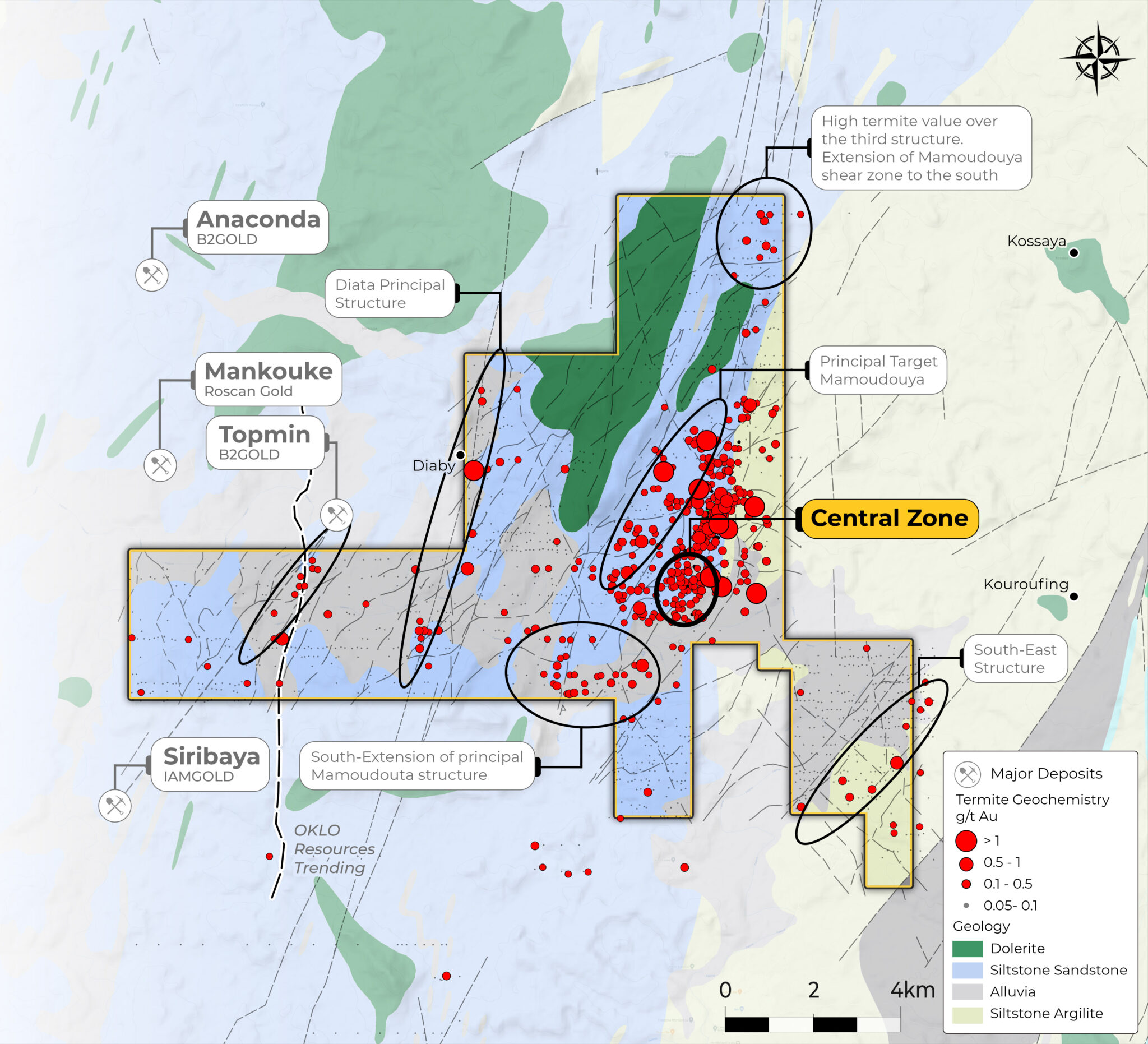

Geological / Geophysical / Geochemical

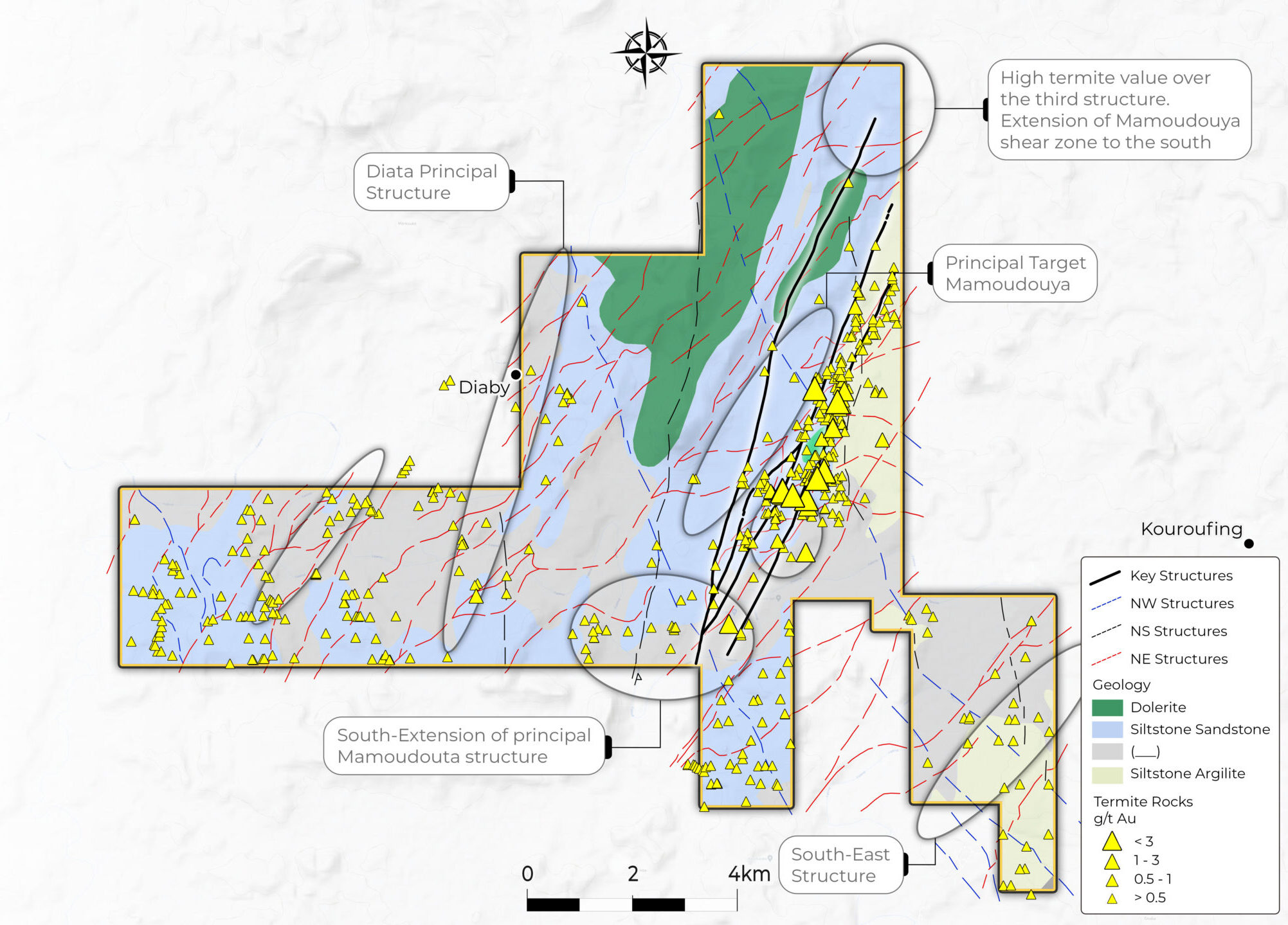

Firstly, NS structures, then development of an anastomose NE shear zone, the late major NW structures interpreted from enhanced magnetics_HD_TDR.

These structures have trisected a former regional NE verging parasitic fold in her axial plane

There are five type of rock major trisected by the major structures (NW NE) with an overview of former regional NE verging parasitic fold overprint by a huge dolerite dyke in NW corner of the permit and an felsic rock in the broad south area of the permit
